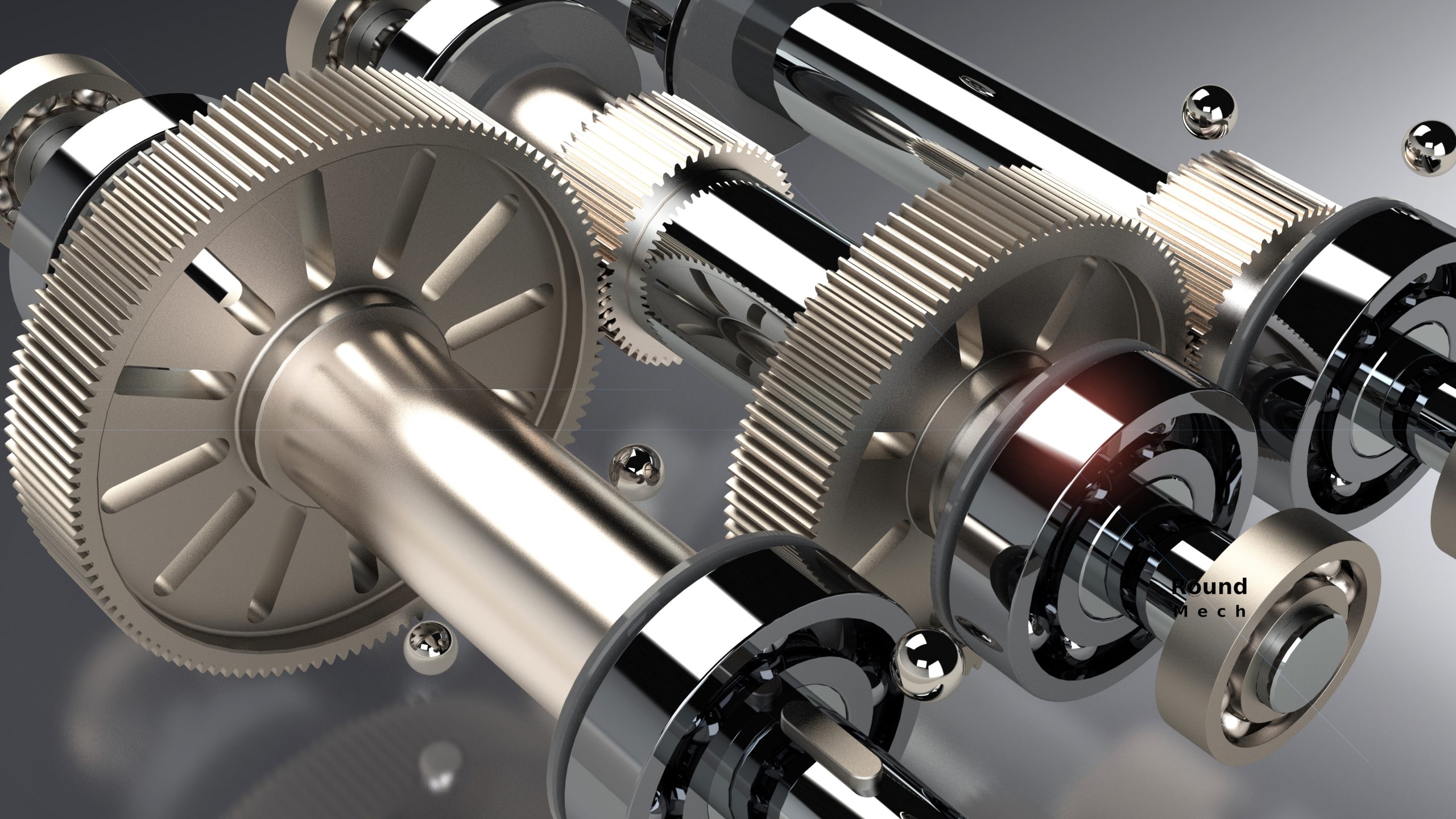

Gear Ratio and Torque Conversion

How Gears Change Torque and Speed

Gears are mechanical components used to transfer rotary motion between shafts.

They allow engineers to change the relationship between:

• Torque (rotational force)
• Speed (rotational speed)

A gear system can increase torque while reducing speed.
It can also increase speed while reducing torque.

Gears do not create power.
They only convert speed and torque according to the application requirements.

---

What Is Torque?

Torque is the rotational force that turns a shaft.

It is measured in:

Newton-meters (Nm)

A higher torque value means that a shaft can produce more turning force.

Example:

• A small motor may rotate fast but have low torque.
• A gearbox can reduce the speed and increase the available torque.

This allows the motor to drive heavier loads.

---

What Is Speed?

Rotational speed shows how fast a shaft rotates.

It is measured in:

RPM (Revolutions Per Minute)

RPM describes how many complete rotations a shaft makes in one minute.

Example:

• 1500 RPM means the shaft makes 1500 rotations every minute.

---

How Gear Ratio Works

The gear ratio defines how much the speed and torque will change.

The basic formula is:$$i=\frac{Z_2}{Z_1}$$i=Z1​Z2​​

Where:

• i = gear ratio
• Z1 = number of teeth on the input gear
• Z2 = number of teeth on the output gear

---

Example: 5:1 Gear Ratio

Input gear:

• 20 teeth

Output gear:

• 100 teeth

Calculation:$$i=\frac{100}{20}=5$$i=20100​=5

The gear ratio is:

5:1

This means:

• Output speed is reduced 5 times.
• Output torque is increased 5 times.

---

Speed Conversion with Gears

The output speed is calculated using:$$n_2=\frac{n_1}{i}$$n2​=in1​​

Where:

• n1 = input speed (RPM)
• n2 = output speed (RPM)
• i = gear ratio

---

Speed Example

A motor runs at:

1500 RPM

A gearbox has:

5:1 ratio

Calculation:$$n_2=\frac{1500}{5}$$n2​=51500​

Result:

300 RPM

The gearbox reduces the speed from:

1500 RPM → 300 RPM

---

Torque Conversion with Gears

The output torque is calculated using:$$T_2=T_1 \times i$$T2​=T1​×i

Where:

• T1 = input torque
• T2 = output torque
• i = gear ratio

---

Torque Example

Motor torque:

50 Nm

Gear ratio:

5:1

Calculation:$$T_2=50 \times 5$$T2​=50×5

Result:

250 Nm

The gearbox increases the torque from:

50 Nm → 250 Nm

---

Real Gear Systems and Efficiency

Real gearboxes have mechanical losses.

Energy is lost because of:

• friction
• bearing losses
• heat generation
• gear tooth contact

The real torque output is:$$T_2=T_1 \times i \times \eta$$T2​=T1​×i×η

Where:

• η (eta) = gearbox efficiency

Example:

Input torque:

50 Nm

Gear ratio:

5:1

Efficiency:

90%

Calculation:$$T_2=50 \times 5 \times 0.9$$T2​=50×5×0.9

Output torque:

225 Nm

---

Relationship Between Torque and Speed

Torque and speed are connected through mechanical power.

The basic relationship is:$$P=\frac{T \times n}{9550}$$P=9550T×n​

Where:

• P = power (kW)
• T = torque (Nm)
• n = speed (RPM)

When speed decreases, torque increases.

When speed increases, torque decreases.

This is the main principle behind gearboxes.

---

Practical Example: Motor with Gearbox

A motor has:

• Power: 5.5 kW
• Speed: 1450 RPM
• Torque: 36 Nm

A gearbox with:

10:1 ratio

is installed.

Output Speed:

$$1450 \div 10=145 RPM$$1450÷10=145RPM

Output Torque:

$$36 \times 10=360 Nm$$36×10=360Nm

With 90% efficiency:$$360 \times 0.9=324 Nm$$360×0.9=324Nm

Final result:

1450 RPM and 36 Nm

becomes:

145 RPM and approximately 324 Nm

The motor now provides much higher turning force.

---

Common Applications of Gear Systems

Gearboxes are used in many engineering applications:

• Industrial machines
• Conveyor systems
• Robots
• CNC machines
• Lifting equipment
• Wind turbines
• Automotive systems
• Production lines

---

Key Engineering Rule

A gear system does not increase power.

It changes the balance between speed and torque.

Lower speed = higher torque

Higher speed = lower torque

This allows engineers to match motors with different mechanical requirements.

---
